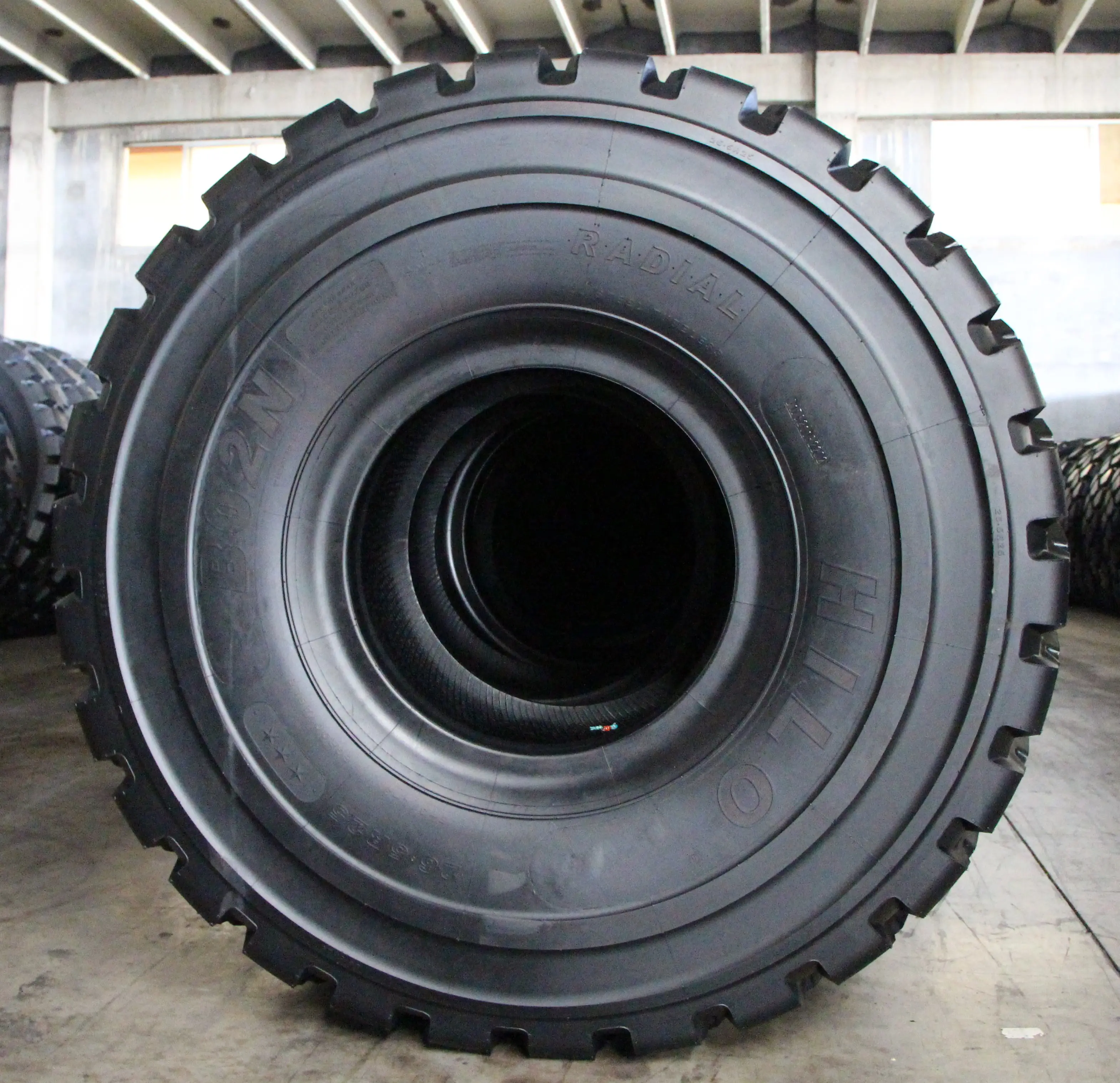

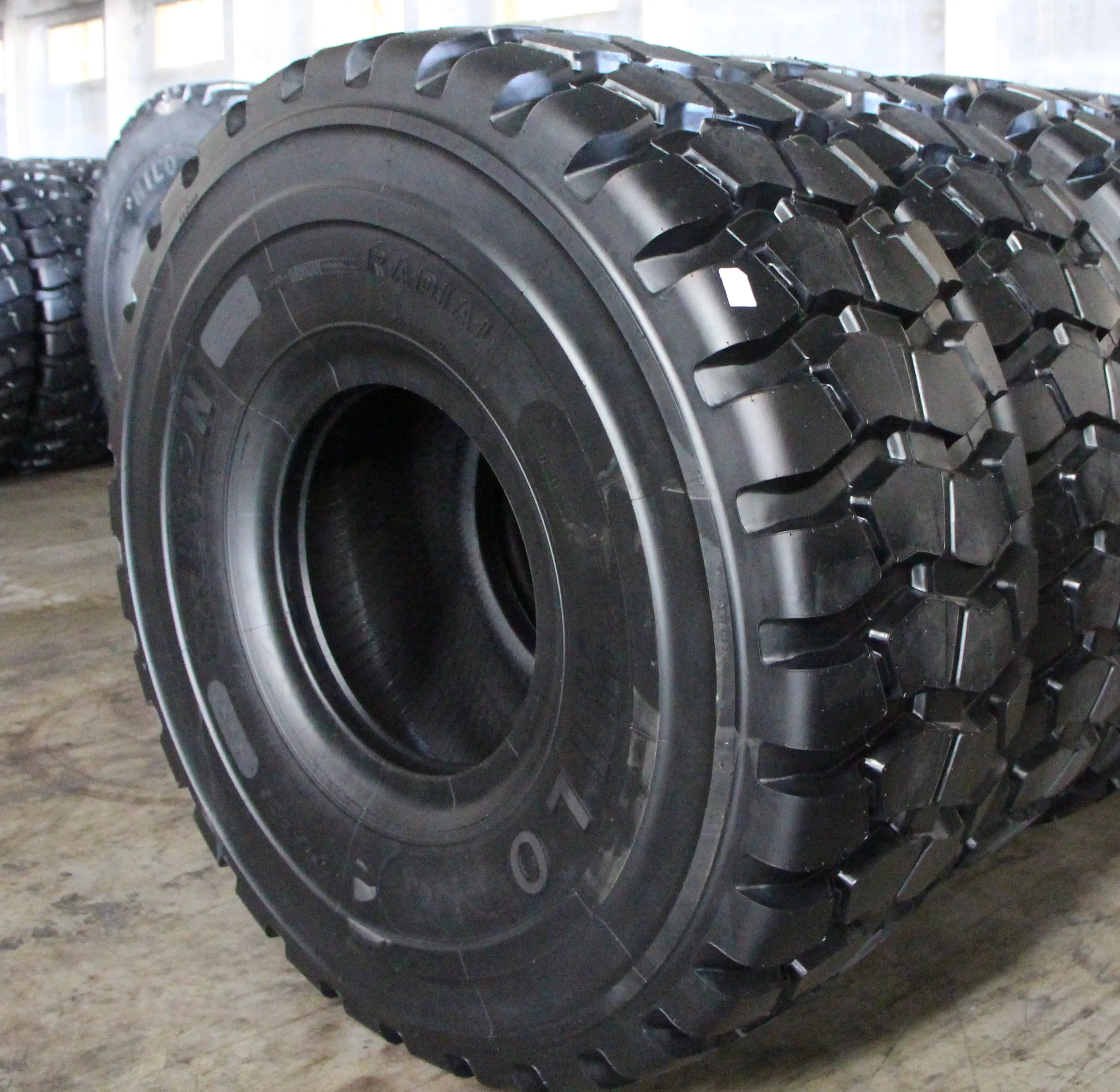

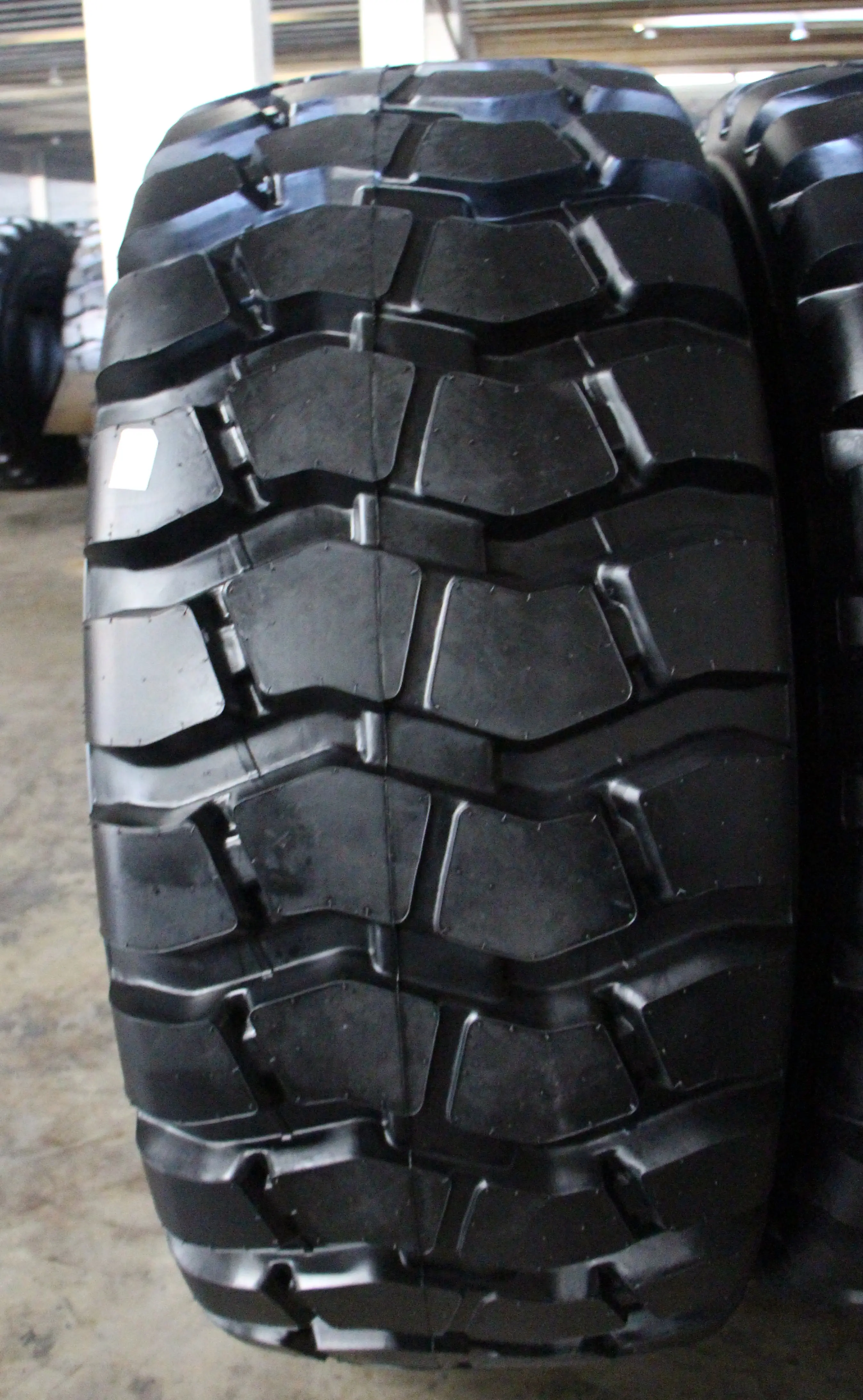

HILO B02N 23.5R25 26.5R25
HILO B02N 23.5R25 26.5R25
HILO B02N 23.5R25 26.5R25
HILO B02N 23.5R25 26.5R25
HILO B02N 23.5R25 26.5R25
HILO B02N 23.5R25 26.5R25

HILO B02N 23.5R25 26.5R25

HILO B02N Pattern Characteristic

  • Increased tread volume for additional wear life and resistance to damage.
  • New sidewall design for enhanced reinforcement and protection.
  • Robust shoulder design and strong casing reliability.

Specifications:

HILO B02N Specification

SIZE STAR RATING LOAD INDEX TRA CODE TREAD DEPTH TYPE Standard Rim (Rim Width &Flange) DIAMETER SECTION WIDTH Max Load STANDER PRESSURE MAX SPEED
(mm) (mm) (mm) (kg) (kpa) (Km/h)
16.00R25 ★★ 177 E-3 34 TL 11.25/2.0 1532 448 12000 1250 50
23.5R25 ★★ 201 L-3 32 TL 19.50/2.5 1617 597 14500 650 10
23.5R25 ★★ 201/185 L-3/E-3 34 TL 19.50/2.5 1617 597 10900 375 10/50
26.5R25 ★★ 209/193 L-3/E-3 37 TL 22.00/3.0 1750 673 18500/11500 650 10/50
29.5R25 ★★ 216/200 L-3/E-3 43.5 TL 25.00/3.5 1873 750 22400/14000 650 10/50
29.5R29 ★★ 218/202 L-3/E-3 43.5 TL 25.00/3.5 1975 750 23600/15000 650 10/50
23.5R25 ★★★ 206/189 L-3/E-3 34 TL 19.50/2.5 1617 597 17000/10300 800 10/50
26.5R25 ★★★ 211 L-3 37 TL 22.00/3.0 1750 673 19500 850 10
29.5R25 ★★★ 221/204 L-3/E-3 43.5 TL 25.00/3.5 1873 750 27250/16000 800 10/50
29.5R29 ★★★ 223/206 L-3/E-3 43.5 TL 25.00/3.5 1975 750 27250/17000 800 10/50
GUDELIINE ON HOW TO USE TYRES
1.Tyre and Rim
(1) Check carefully before tyre mounting to see if the rim sizes are identical to those marked on sidewalls.
(2)The tyre should be fitted as much as possible to standard rims or allowable rim range.
(3) The tyre should not be fitted to deformed rims or non-conformity rims.
warning:
Deformed rims or non-conformity rims will result in premature tyre toe failure or blow out to hurt People.
2.Inflated Pressure
(1) Rules should be followed to inflate the tyre.
(2) lt is not appropriate to infate the tyre over pressure and then release the air to standard pressure.
(3) Check the tyre pressure regularly and replenish when the air pressure is not found sufficient.
Warning:
Tyre under-ressure will ause decreased loading capacity easy cord breaking and dangerous blow out.Tyre overpressure wil ause cord strengthloss anddangerous blow out.
3.Load
(1 ) Select the tyre of corresponding ply rating and load based on the vehicle's standard loading capacity.
(2)The tyre of low ply rating can not bear high load.The tyre load Mn not be increased by the increase of inflated pressure.
(3) The load should be distributed evenly on the vehicle.
Warning:
Overload will cause a serious injury to the tyre or the People. The vehicle with he load unevenly distributed will cause some of yes serious overlcoad,which is one of the factors causing accidents.
4.Speed
The tyre should match the vehicle in operating speed and operate in the range of specified speed for vehicle.
Warning:
Overspeed will cause quicker tread wear,rapid heat buld up,tyre strength deterioration,separations and even tyre blow out.
