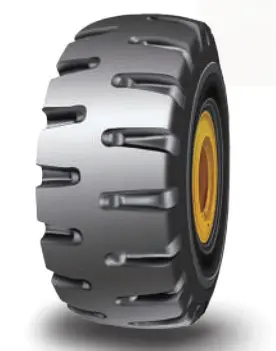

HILO L5 23.5-25
PATTERN CHARACTERISTIC
- Ultra-deep block pattern and high-strength casing design, with ripe-resistant,anti-puncture and cut resistance,
suitable for use on loaders and scrapers in themining, forest and underground mining operations in harsh environment conditions.
Specifications:
L5 SPECIFICATION:
| Size | PLY | TRA Code | TREAD DEPTH (mm) |
TYPE | Standard Rim (Rim Width & Flange) |
DIAMETER (mm) |
SECTION WIDTH (mm) |
MAX LOAD (kg) |
STANDARD PRESSURE (bar) |
MAX SPEED (km/h) |
| 23.5-25 | 24 | L-5 | 78.5 | TT | 19.50/2.5 | 1615 | 595 | 12500 | 4.75 | 10 |
FITTING TO OTR
GUDELIINE ON HOW TO USE TYRES
1.Tyre and Rim
(1) Check carefully before tyre mounting to see if the rim sizes are identical to those marked on sidewalls.
(2)The tyre should be fitted as much as possible to standard rims or allowable rim range.
(3) The tyre should not be fitted to deformed rims or non-conformity rims.
warning:
Deformed rims or non-conformity rims will result in premature tyre toe failure or blow out to hurt People.
2.Inflated Pressure
(1) Rules should be followed to inflate the tyre.
(2) lt is not appropriate to infate the tyre over pressure and then release the air to standard pressure.
(3) Check the tyre pressure regularly and replenish when the air pressure is not found sufficient.
Warning:
Tyre under-ressure will ause decreased loading capacity easy cord breaking and dangerous blow out.Tyre overpressure wil ause cord strengthloss anddangerous blow out.
3.Load
(1 ) Select the tyre of corresponding ply rating and load based on the vehicle's standard loading capacity.
(2)The tyre of low ply rating can not bear high load.The tyre load Mn not be increased by the increase of inflated pressure.
(3) The load should be distributed evenly on the vehicle.
Warning:
Overload will cause a serious injury to the tyre or the People. The vehicle with he load unevenly distributed will cause some of yes serious overlcoad,which is one of the factors causing accidents.
4.Speed
The tyre should match the vehicle in operating speed and operate in the range of specified speed for vehicle.
Warning:
Overspeed will cause quicker tread wear,rapid heat buld up,tyre strength deterioration,separations and even tyre blow out.
